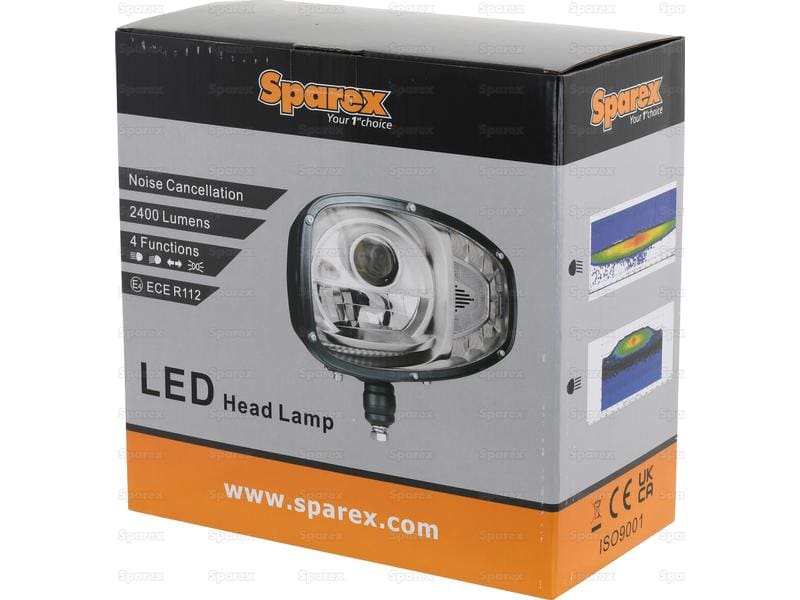

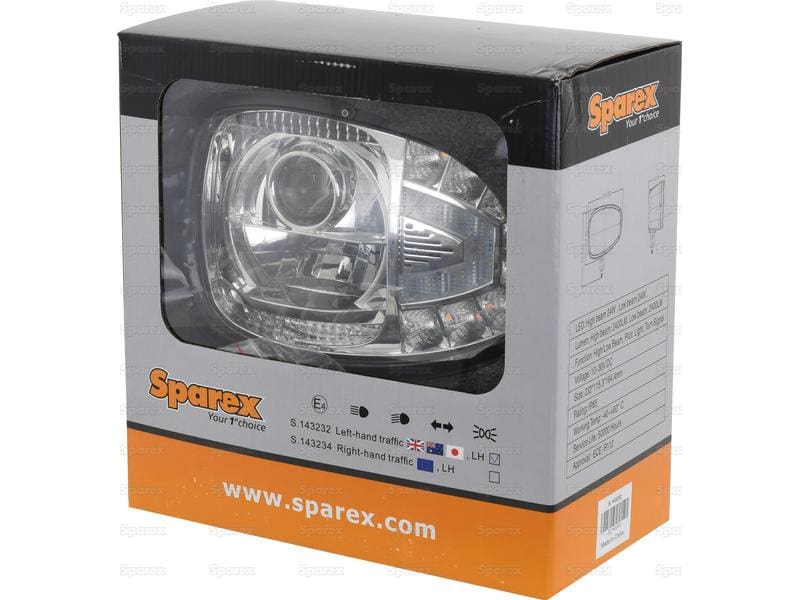

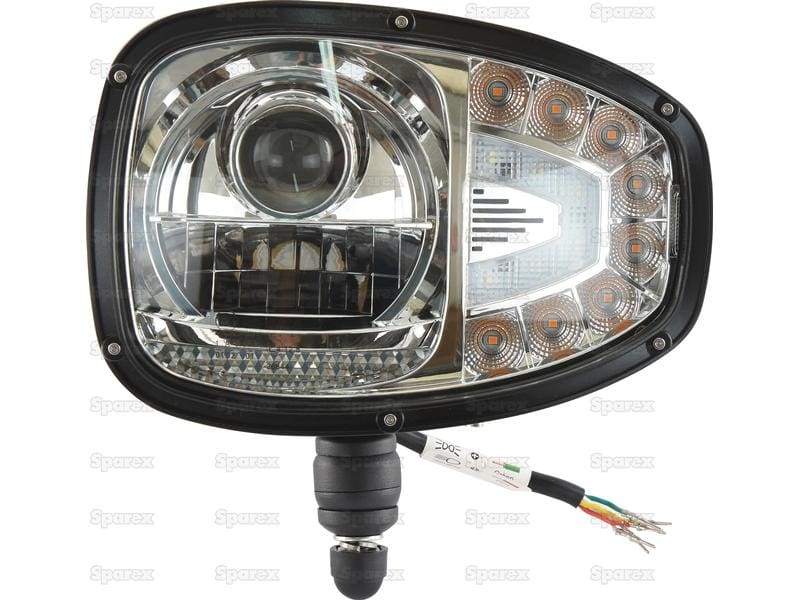

JCB/MANITOU LED HEADLIGHT LH
ECE Rating: Reg112 – E4 112R01/08*26844*00, Reg7 – E4 7R02/27*26844*00, Reg6 – E4 6R01/28*26844*00
CE Approved: Yes
IP Rating: IP65
Connection Type: DT Connector (Six Pin)
Lumens Raw
1200 – 1290
Lux Value
67300 – 26800
Number of LEDs:
2 LEDs
Overall height (mm)
161
Overall length (mm)
237
Overall width (mm)
109
Power Consumption @ 12V:
Low Beam 1.25Amps
Power Consumption @ 24V:
Low Beam 0.625Amps
Related products
RH or LH Fitment
LH
RoHS Approved
Yes
SAE Approved
Yes
